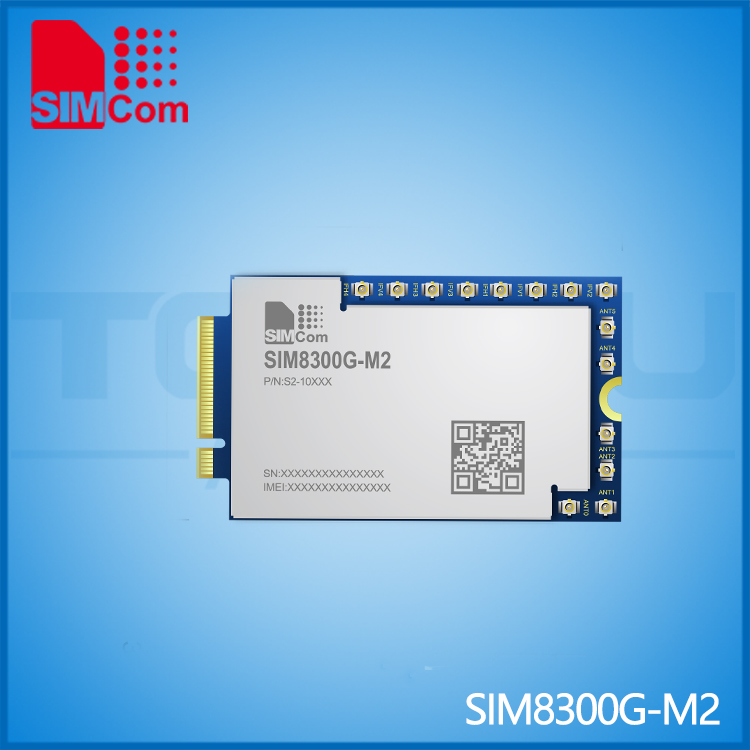

芯讯通 5G模组 SIM8300G-M2

品　牌芯讯通（SIMCom）

尺　寸 52.0*30.0*3.65mm

描　述 SIM8300G-M2是多频段5GNR/LTE-FDD/LTE-TDD/HSPA+模块，支持R155G NSA/SA高达7Gbps的数据传输。 SIM8300G-M2采用M2外形规格，型号为3052-D3-B。SIM8300G-M2的AT指令与SIM7912GSIM8200-M2系列模块这也将客户的投资降到最低，并能在短时间内上市。

18038161549

样品申请

资源下载

产品详情

产品优势

-标准的M.2接口

-高吞吐量数据通信

-SIM8300G-M2的AT指令兼容SIM7912G/SIM8200-M2系列模块

产品详情

General Features

• Frequency Bands:

5G mmWave: n257,n258,n260,n261

5G Sub-6G: n1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n40,n41,n66,n71,n77,n78,n79

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66/B71

LTE-TDD: B34/B38/B39/B40/B41/B42/B46/B48

WCDMA: B1/B2/B3/B4/B5/B8

• Supply voltage range: 3.135V~ 4.4V

• Control Via AT Commands
• Operation temperature: -30℃ ~ +70℃

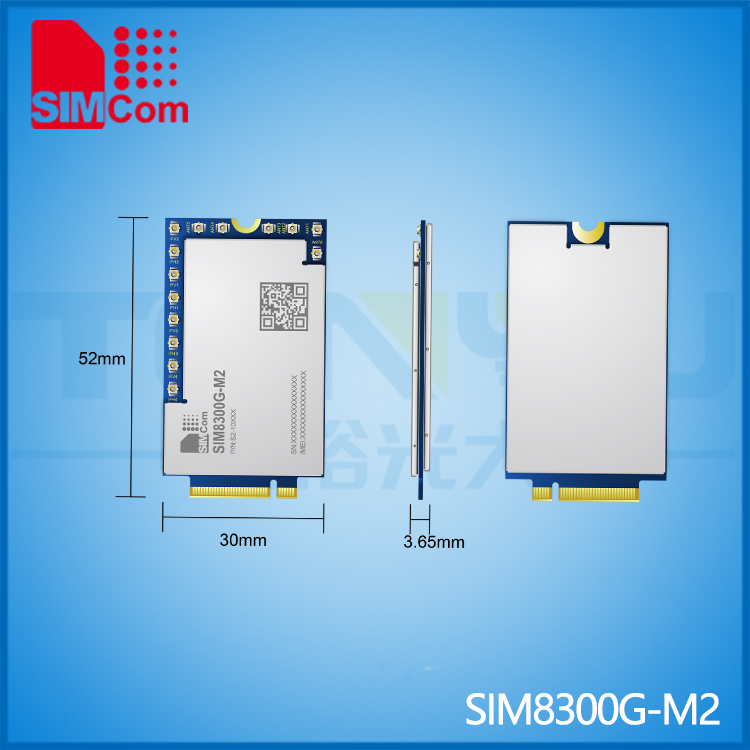

• Dimensions: 52.0*30.0*3.65mm
• mmWave/Sub‐6G/LTE‐FDD/LTE‐TDD/WCDMA

Data

• mmWave
‐ Uplink up to 3 Gbps
‐ Downlink up to 7 Gbps

• Sub‐6G
‐ Uplink up to 1 Gbps
‐ Downlink up to 4 Gbps

• LTE Cat20+
‐ Uplink up to 200Mbps
‐ Downlink up to 2 Gbps

• HSPA+
‐ Uplink up to 5.76Mbps
‐ Downlink up to 42 Mbps

Other Features

• USB Driver for Microsoft Windows Win7/Win8/Win10
• USB Driver for Linux /Android
• RIL supporting for Android 6.0/7.0/8.0/9.0
• RNDIS /NDIS/PPP/MBIM to Win8
• Firmware update via USB
• TCP/IP/IPV4/IPV6/Multi‐PDP/FTP/FTPS /HTTP/HTTPS/MQTTS/DNS/SSL3.0/TLS1.0/TLS1.2
• DTMF (Sending and Receiving)
• VoNR*/VoLTE/CSFB
• FOTA

Approvals

• RoHS\REACH\JATE\Telec\CE(RED)\GCF\FCC\PTCRB\IC

• Interfaces

• USB2.0
• USB3.1
• UART
• USIM (1.8V /2.95V)

• PCM

• I2C

• GPIOs
• PCIe Gen3
• Antenna x 14
